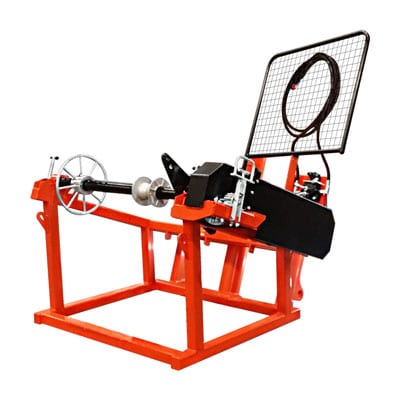

Line machine 2230 is a hydraulically driven drum winch with step less regulation of both force and speed. Maximum pulling force is 3000 kp. Suitable for mounting in the tractors Grab-John- or front bracket. The line machine is intended to be connected to external hydraulics and all controls are assembled together on the left side for easy operation. The winch can be equipped with pilot rope drums, single- or multi-section split drums, and a steel drum for thicker pilot rope. The line machine comes delivered complete with tension knob, set of alu-cones Ø70/130 and drum shaft suitable for wooden drums and the earlier-mentioned Sahlins-drums.
New construction or demolition
The machine can be equipped with pilot rope drums 3×1500 m or 3×2200 m. Can also be equipped with single- or multi-section split drums for demolition or a steel drum for thicker pilot rope such as 2000 m x Ø12 or Ø14 mm. As standard, the machine is delivered with a drum shaft suitable for ordinary wooden drums and our standard drums. Can also be supplemented with an extra drum shaft for easier handling when working with several drums.
*See product sheet for more info
