Cable winch 3300

SKU: 3300-1000 Category: Winches
  • Description
  • Specifications
  • Product folder
  • Get Offer

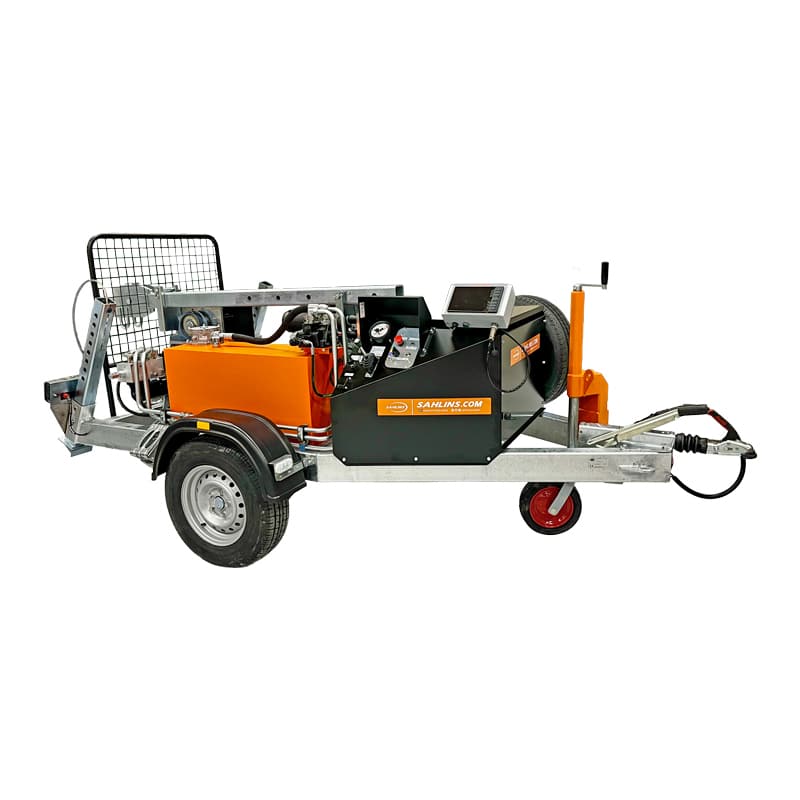

The underground Cable Winch 3300 is a hydraulically operated winch for cable pulling with a variable speed and force. By having double capstan wheels, this winch always have the maximum pulling force available. In this case, 3000 kp. Chassi with push brake, spring suspended wheel axle, adjustable support legs and wheels. Hydraulic system with variable pump for complete and variable control of pulling force and speed. Generously equipped as standard. Always comes with Ø10 x 1000 m wire, manometer and a drawbar mounted on transport brackets.

Log and analyze your work

Several accessories available such as this recording unit. The display shows speed, pulling force and distance during pulling. Export the data to a external disc when the job is done.

The instrument panel

Easy operation of in / out, speed and gas. The manometer also allows you to set the maximum power limit (red pointer) if needed.

*See product sheet for more information



Share this product
  • Share on Facebook
  • Share on WhatsApp
  • Share on LinkedIn
  • Share by Mail
Weight 1575 kg
Dimensions 3570 × 1835 × 1350 mm
Pulling force

3000 kp

Wire

Ø10x1000m

Fuel

Petrol

Pulling speed

appr 25 m / min

User manual 3300 (ENG)
